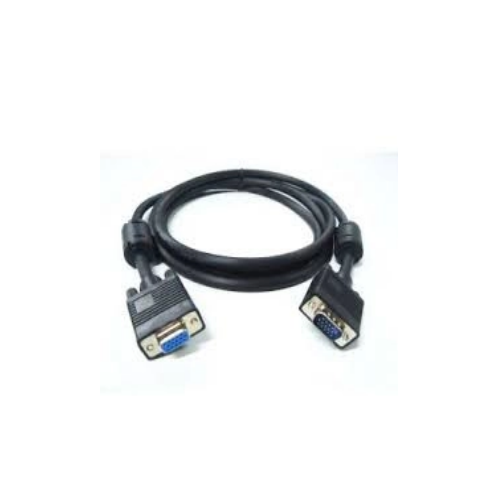

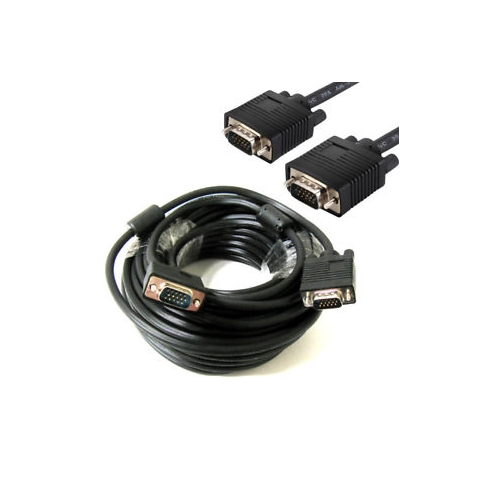

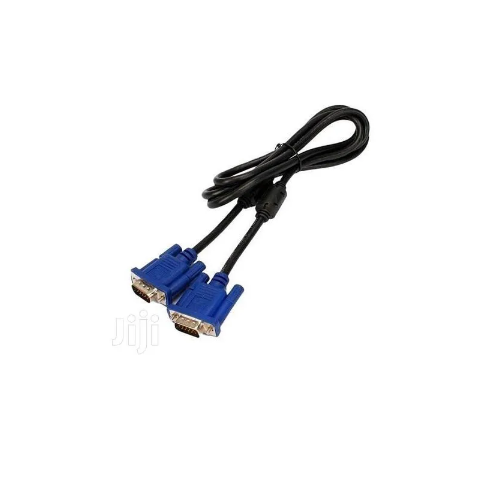

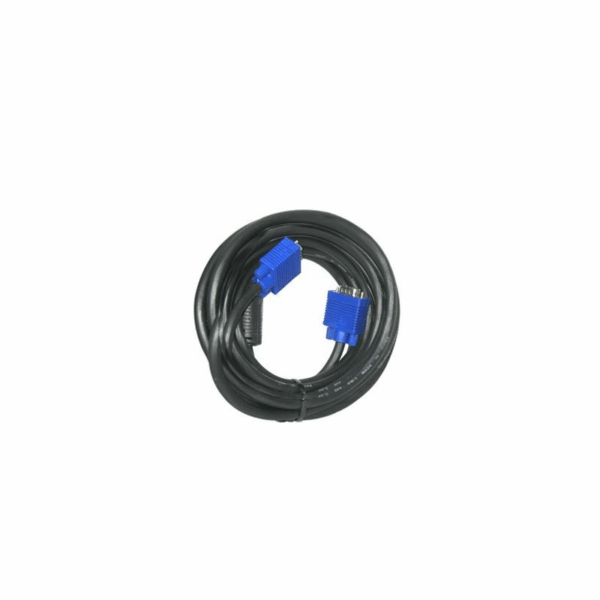

5M VGA Cable 5M VGA Cable High Resolution VGA Cable (5-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high-resolution applications of 1920×1200 and above. 5M High Resolution VGA video cable (HD15 to HD15) eliminates the picture “ghosting” and fuzzy images that are inherent to non-coaxial VGA cables while delivering superior EMI interference protection by using ferrite cores near the connector ends. 5M VGA Cable Specifications WARRANTY INFORMATION Warranty Lifetime HARDWARE Cable Jacket Type PVC – Polyvinyl Chloride Cable Shield Type Aluminum-Mylar Foil with Braid Connector Plating Nickel Fire Rating CMG Rated (General Purpose) Number of Conductors 14 Number of Ferrites 1 CONNECTOR(S) Connector A 1 – VGA (15 pin, High Density D-Sub) Male Connector B 1 – VGA (15 pin, High Density D-Sub) Male ENVIRONMENTAL Humidity 0 – 80 %RH Operating Temperature 0 to 60 °C Storage Temperature -20 to 80 °C PHYSICAL CHARACTERISTICS Cable Length 5 m [16.4 ft] Color Black Product Length 5 m [16.4 ft] Weight of Product 556 g [19.6 oz] Wire Gauge 28 AWG PACKAGING INFORMATION Package Height 87 mm [3.4 in] Package Length 22 cm [8.7 in] Package Quantity 1 Package Width 20 cm [7.9 in] Shipping (Package) Weight 0.6 kg [1.2 lb]
